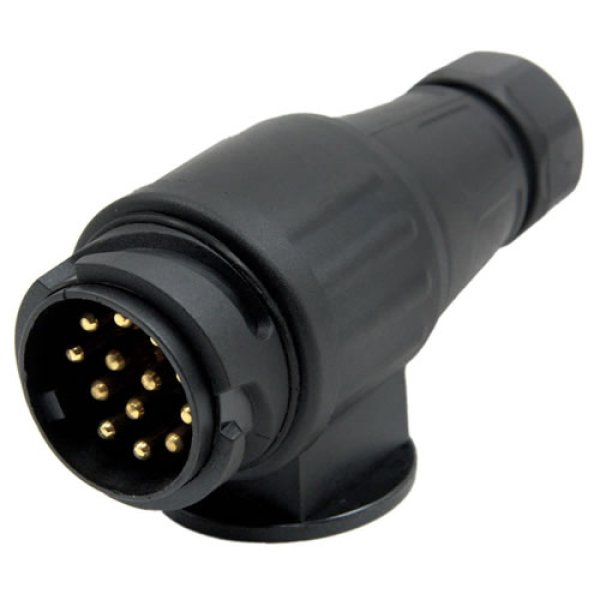

プラグ ヨーロッパ13極用 [987722]
販売価格: 7,535円(税込)
商品詳細
13極 丸ピンソケット 12V
PIN 1 - Yellow Wire (Left/Hand Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps)
PIN 3 - White Wire ( Earth Return)
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp)
PIN 6 - Red Wire (Stop Lamp)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp)
PIN8 -Pink Wire ( Reversing Light)
PIN9-orange wire ( 12v permanent power from battery 12v)
PIN10-grey wire(12v ignition on (battery charging or fridge)
PIN11- White/ black wire (earth for terminal 10)
PIN12-white /blue wire (NOT usually used)
PIN13- White/red wire ( earth for terminal 9)
